LPG gas cookers with 3 burners for high pressure wok
We can provide CKD, OEM/ODM service
Specification
| Model number： | 3-RTS151 |
| Product type： | Table top cooker |
| Panel： | Stainless Steel |
| Panel finish(Option)： | Stainless steel / Painted |
| Ignition： | Piezo ignition |
| Product size(mm)： | 720*395*111 |
| Gas pipe inner dia.(mm)： | Φ9.5 |
| Heat efficiency： | > 55 % |
| Co： | < 350 ppm |
| Gas type（Option）： | LPG 2800pa |
| NG 2000pa |
Burner System
 |
Burner System： | |
| Burner rate(kW)： | 2.5 | |
| Burner size： | Φ100 | |
| Flame： | Honey comb with straight flame | |
| Material of burner： | Cast iron | |
| Surface finish： | Golden paint | |
| Air injection | Double barreled | |
 |
Small Burner： | |
| Burner rate(kW)： | 0.9 | |
| Burner size： | Φ30 | |
| Flame： | Straight flame | |
| Material of burner： | Steel | |
| Pan support： | 4-ear enameled with tray | |
| Air injection | Single barreled | |
|
|
Shape: | Square |
| Optional: | with teeth on the ear | |
Production and equipment
 |
 |
 |
|

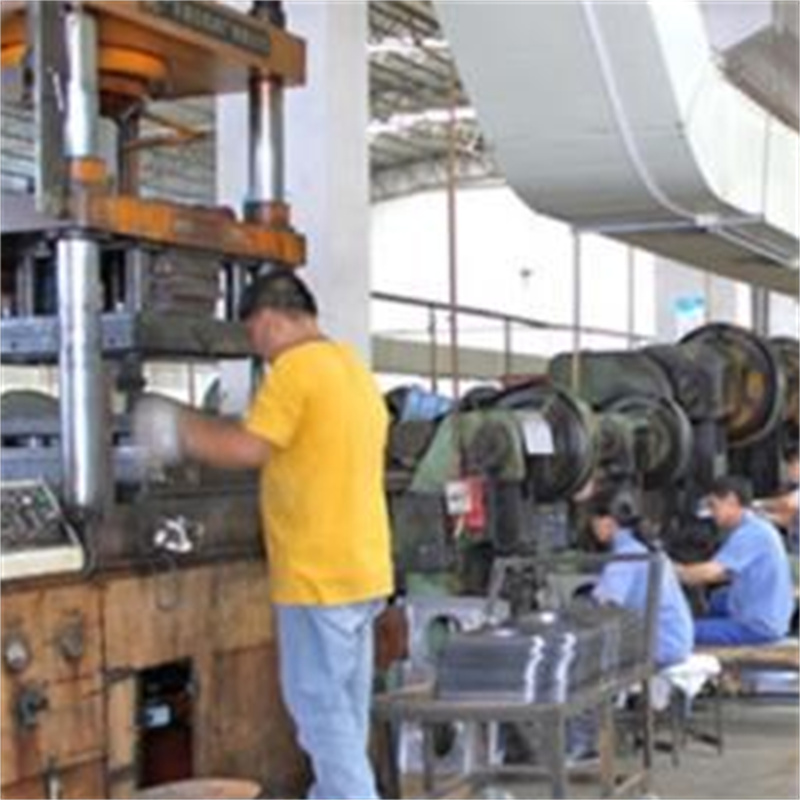

Punching |
Assembly |
Welding |
 |
|
|
|
|
Safety regulation integrated detector |
Gas density detector |

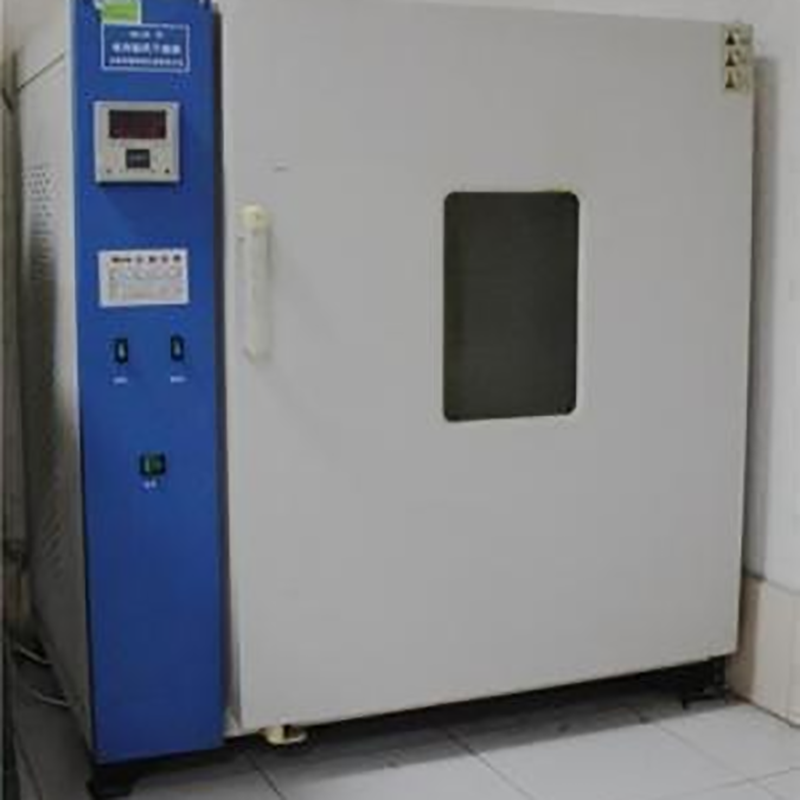

Electric blast drying oven |
Salt mist detector |
Gas density detector
Accidental gas leakage poses a great threat to property, environment and human life. Gas detection products are dedicated to various industrial facilities, from small boiler rooms to large petrochemical plants and refineries.
Gas detector, flame detector, natural gas alarm - provide excellent protection at all levels, ensure the most favorable coverage and detection, reduce hazards and protect life.
Accurate and repeated measurement of gas density is essential in many devices. From fuel mixing to product quality, to hydrogen purity and the replacement of utility turbines, Gas density series products help you accurately measure with excellent reliability, maintainability and operability. More than 35 gases can be detected.
Gas density detector can not only continuously measure gas density, but also measure important parameters such as specific gravity and molecular weight of gas. The detector is designed for intrinsically safe, fireproof, explosion-proof and other applications. It is designed to maintain the accepted devices free of charge.
The gas density detector is a robust microprocessor-based converter, designed in two versions, which can meet the requirements of general fields and explosion-proof applications. In addition to displaying several key data items, the converter also provides three different calibration methods for you to choose: automatic, semi-automatic and one-touch manual operation.
Packing and Transportation
